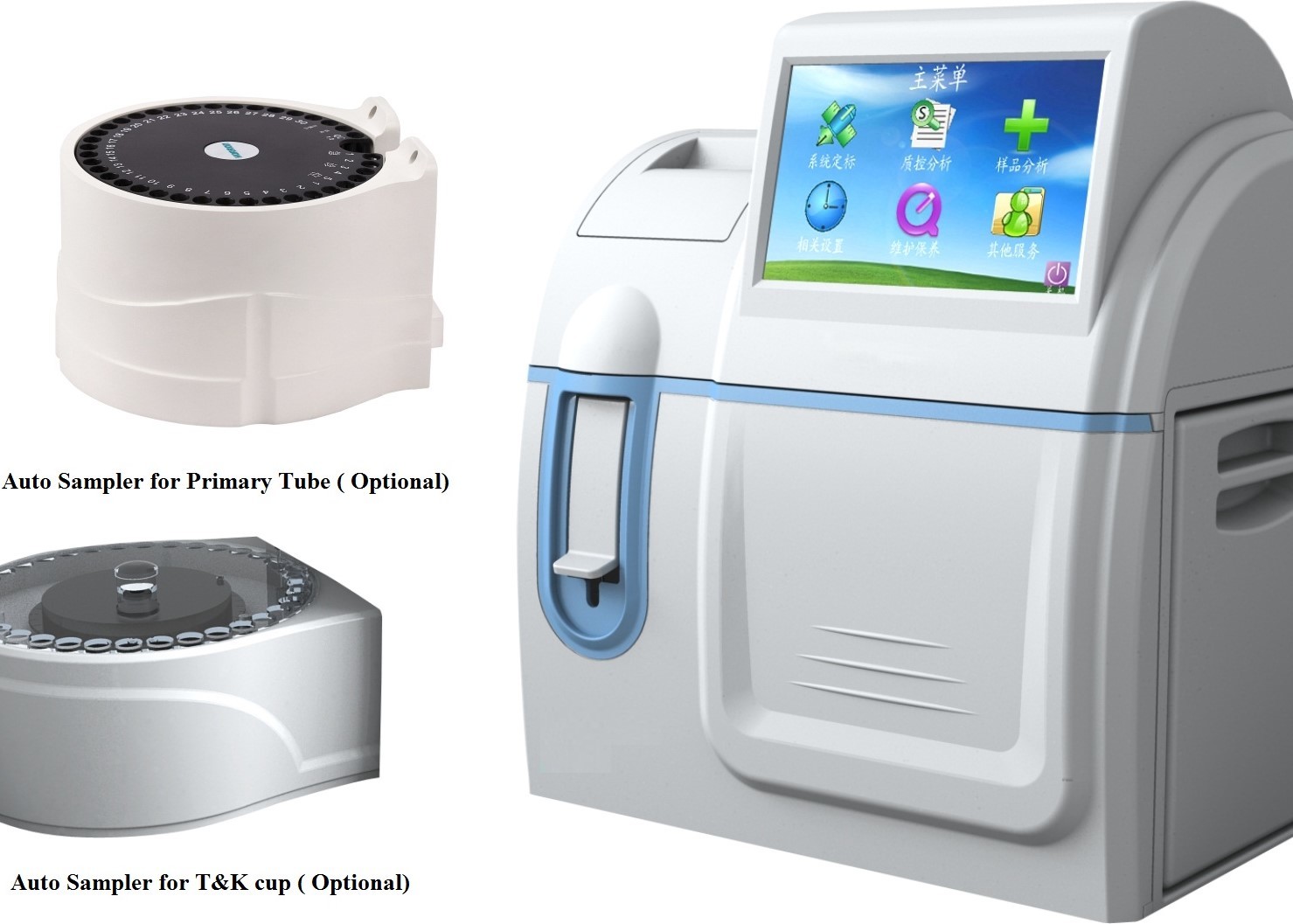

7'' Touch Screen High Accurate Medical Electrolyte Analyzer For Laboratory
Quick details
Temperature 5-40℃
Relative Humidity ≤ 80 %
Atmospheric pressure (86~106) kPa
Power supply AC220V±22V, 50Hz±1Hz
Power ≤120W
Dimension 34mm*200mm*380mm
Net weight 6KG
Product description
- 7” Color touch screen, easy to operate
- High accurate and long life electrode and TCO2 sensor
- Programmable multi-format print-out
- Reagent pack, real time monitoring of reagent residual volume
- Up to 50,000 test results can be stored
- RS-232 port, supporting bar code reader and USB interface
- Sleep mode to reduce reagent consumption
- Option: Sample tray
Product specification
Sample: serum, plasma, whole blood, cerebrospinal fluid and dilute urine
Analysis Method: ion selective electrode (ISE)
| Items | Measuring Range | Resolution | Measuring Precision (CV%) |
| K+ | 0.5-20.0mmol/L | 0.01 mmol/L | ≤1.0% |
| Na+ | 15-200mmol/L | 0.1 mmol/L | ≤1.0% |
| Cl- | 15-200mmol/L | 0.1 mmol/L | ≤1.0% |
| Ca2+ | 0.1-6.0mmol/L | 0.01 mmol/L | ≤1.0% |
| Li+ | 0.1-5.0mmol/L | 0.01 mmol/L | ≤2.0% |
| pH | 4-9pH | 0.01 pH | ≤0.5% |
| TCO2 | 2.0-70.0mmol/L | 0.1 mmol/L | ≤3.0% |
Product features
- Human-machine interactive menu; Dynamic and real-time display of sample ID
- Liquid level automatic detection and alarming. Real-time diagnostic of system working status
- Automatically detect and filter tiny bubbles to avoid clog and ensure accurate measurement
- Wave theory flushing method and direct flushing pipe method to avoid block and crossed contamination
- Automatic calibration and two-point correction to adjust slope and intercept; Available to print-out QC graph and QC statistical parameters
- Power failure protection to avoid data losing. Data storage could be extended to more than 50000. Supporting fuzzy query
- Supporting LIS software; Upload data format is selectable; Supporting RTC Clock management
- Available to power off any time, therefore reduce reagent consumption, suitable for any hospitals
